Explore our range of modular cold rooms, designed with eco-friendliness, energy efficiency, and IoT connectivity in mind. We offer solutions tailored for cooling, holding, or freezing needs in industries such as food processing, horticulture, floriculture, pharmaceuticals, hospitality, QSR, poultry, seafood, fruits and vegetables, banana ripening, and mushroom cultivation chambers.

Cutting-edge technology, robust construction, and versatile applications.
Rigid Cyclopentane Foam Insulation
Skin Finish: Pre-painted Galvanized Steel (PPGI) or Stainless Steel (SS 304)
Insulation Thickness: 50mm to 200mm
Classic and Premium Designs Available

Classic
Panel to Panel Joints: Camlock with silicon filling
Wall to Ceiling and Wall to Floor Joints: Flashings and riveting

Premium
Panel to Panel Joints: Camlock with gasket
Wall to Ceiling and Wall to Floor Joints: Camlock with gasket

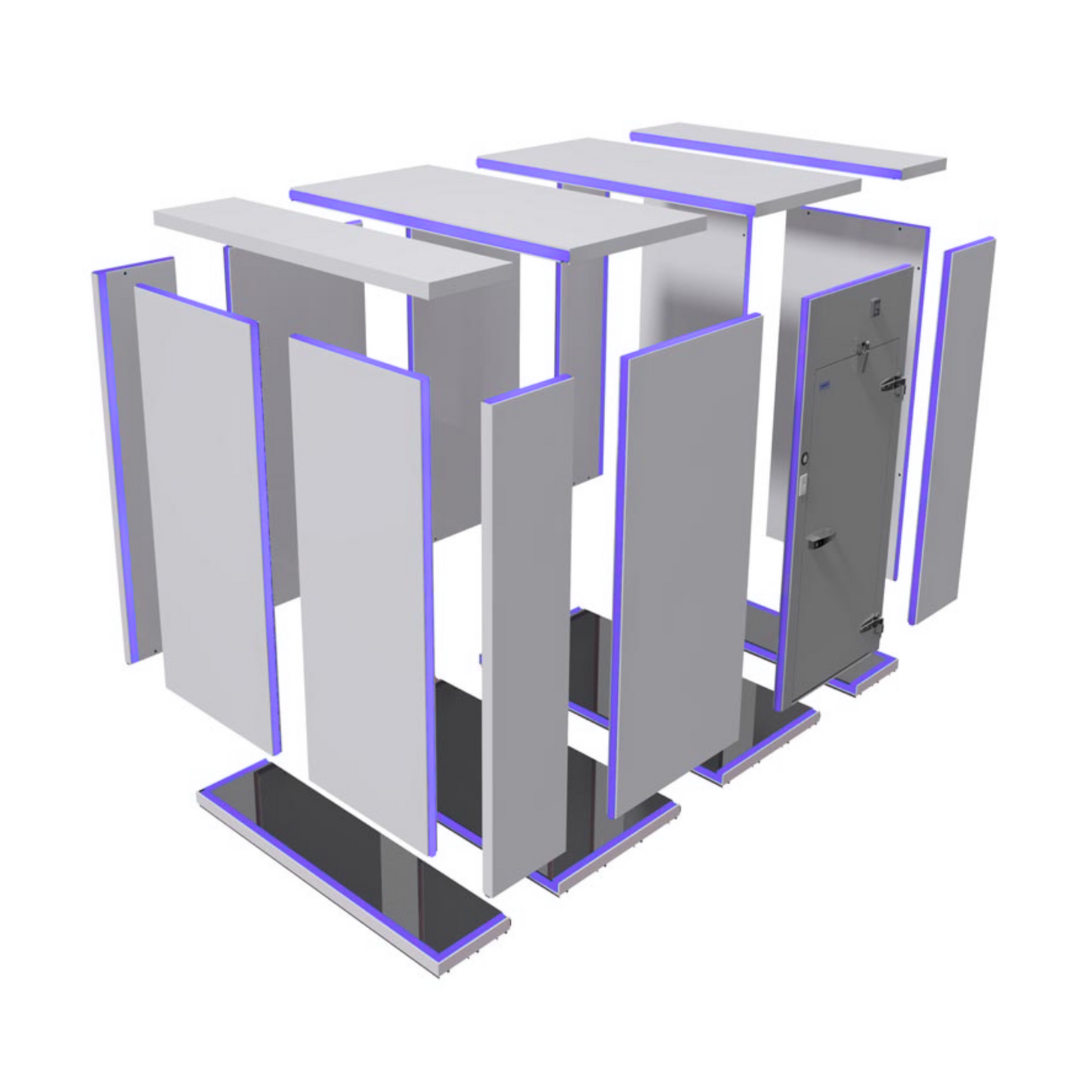

100% modular, leak-proof, and rapid installation.

Aesthetically designed, factory-built, and tested Cold Room doors available in standard and customized sizes.
Swing Type (self-closing or push to close)

Covings, Door Kick Plate, Strip Curtains Hatch Window, Air Curtain

Mobile Operation:
Remote monitoring and control from IOS, Android, and PC.

Built-In Data Logger:
Records data, including temperatures and events.

Defrost:
Prevents unnecessary cycles, even during power outages.

Preventive Maintenance:
Monitors compressor runtime and sends maintenance alerts.

Cooling Control:
Adjusts cooling loads for efficiency.

Air Circulation:
Maintains uniform temperature with periodic air circulation.

Download Catalogue
Call or Text: +91-9599220314
Email: salescorporate@stellargastronom.com
Model
Title
Dimensions
Temprature Range
Electrical Rating
WC 181824
Walk in Chiller 6 ft x 6 ft
1800 x 1800 x 2400
2 to 6 deg C
230 V / 1PH / 1.4 KW
WC 241824
Walk in Chiller 8 ft x 6 ft
2400 x 1800 x 2400
2 to 6 deg C
230 V / 1PH / 1.6 KW
WC 242424
Walk in Chiller 8 ft x 8 ft
2400 x 2400 x 2400
2 to 6 deg C
230 V / 1PH / 1.8 KW
WC 243024
Walk in Chiller 10 ft x 8 ft
3000 x 2400 x 2400
2 to 6 deg C
230 V / 1PH / 2.0 KW
WC 302424
Walk in Chiller 10 ft x 10 ft
3000 x 3000 x 2400
2 to 6 deg C
230 V / 1PH / 2.2 KW
WC 181824
Walk in Chiller 6 ft x 6 ft
1800 x 1800 x 2400
-22 to -18 deg C
230 V / 1PH / 1.6 KW
WC 182424
Walk in Chiller 8 ft x 6 ft
2400 x 1800 x 2400
-22 to -18 deg C
230 V / 1PH / 1.8 KW
WC 242424
Walk in Chiller 8 ft x 8 ft
2400 x 2400 x 2400
-22 to -18 deg C
230 V / 1PH / 2.4 KW
WC 243024
Walk in Chiller 10 ft x 8 ft
3000 x 2400 x 2400
-22 to -18 deg C
230 V / 1PH / 2.5 KW
WC 303024
Walk in Chiller 10 ft x 10 ft
3000 x 3000 x 2400
-22 to -18 deg C
230 V / 1PH / 2.7 KW
