FrostVault
Cold Rooms
FrostVault
Cold Rooms
Explore our range of modular cold rooms, designed with eco-friendliness, energy efficiency, and IoT connectivity in mind. We offer solutions tailored for cooling, holding, or freezing needs in industries such as food processing, horticulture, floriculture, pharmaceuticals, hospitality, QSR, poultry, seafood, fruits and vegetables, banana ripening, and mushroom cultivation chambers.
- Cutting-edge technology, robust construction, and versatile applications.
- Rigid Cyclopentane Foam Insulation
- Skin Finish: Pre-painted Galvanized Steel (PPGI) or Stainless Steel (SS 304)
- Insulation Thickness: 50mm to 200mm
- Classic and Premium Designs Available
Classic

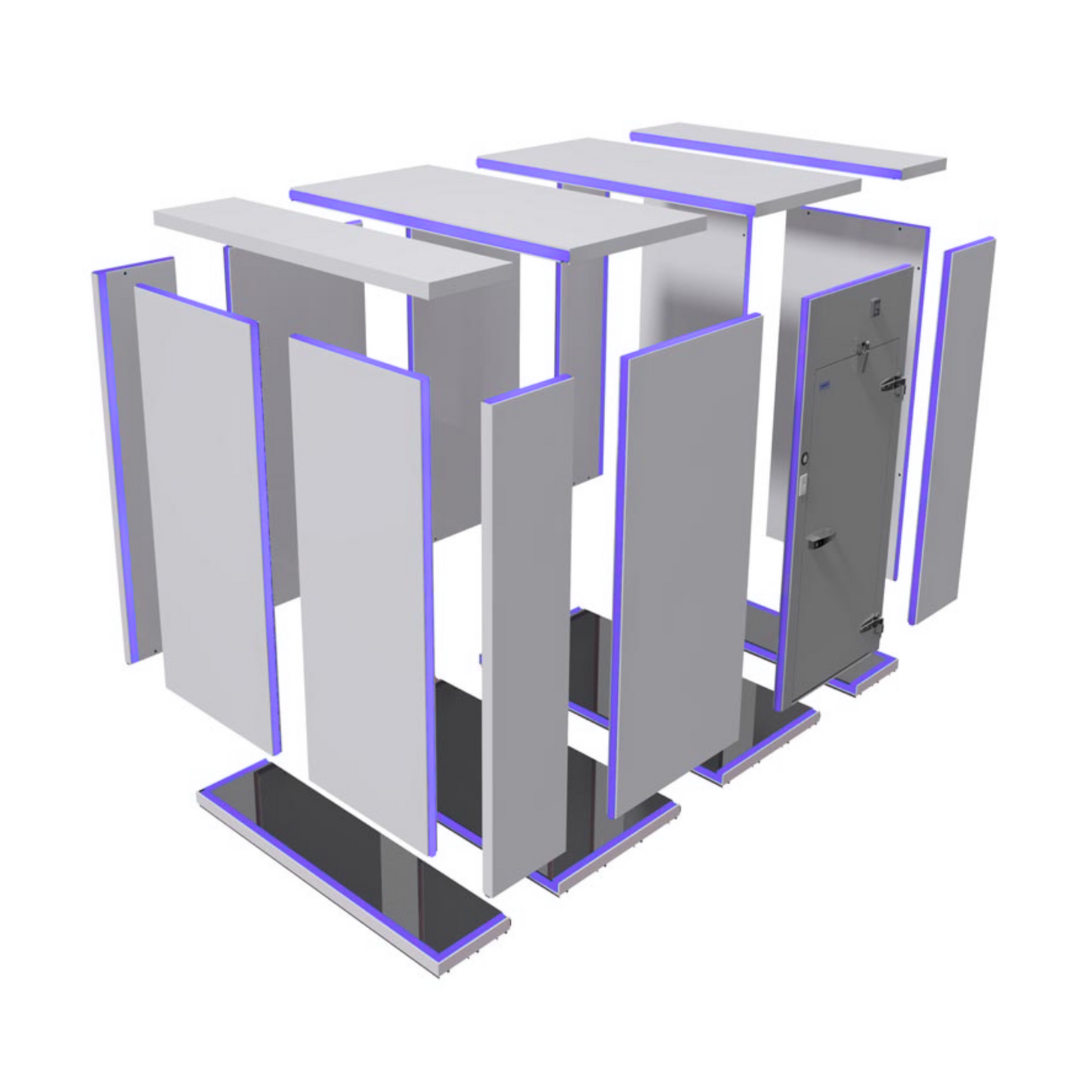

- Panel to Panel Joints: Camlock with silicon filling
- Wall to Ceiling and Wall to Floor Joints: Flashings and riveting
Premium
- Panel to Panel Joints: Camlock with gasket
- Wall to Ceiling and Wall to Floor Joints: Camlock with gasket
- 100% modular, leak-proof, and rapid installation.
- Aesthetically designed, factory-built, and tested Cold Room doors available in standard and customized sizes.
- Swing Type (self-closing or push to close)
- Covings, Door Kick Plate, Strip Curtains Hatch Window, Air Curtain
Mobile Operation:
- Remote monitoring and control from IOS, Android, and PC.
Built-In Data Logger:
- Records data, including temperatures and events.
Defrost:
- Prevents unnecessary cycles, even during power outages.
Preventive Maintenance:
- Monitors compressor runtime and sends maintenance alerts.
Cooling Control:
- Adjusts cooling loads for efficiency.
Air Circulation:
- Maintains uniform temperature with periodic air circulation.
|
Model
|
Title
|
Dimensions (mm)
|
Temprature Range
|
Electrical Rating
|
|---|---|---|---|---|
|
WC 181824
|
Walk in Chiller 6 ft x 6 ft
|
1800 x 1800 x 2400
|
2 to 6 deg C
|
230 V / 1PH / 1.4 KW
|
|
WC 241824
|
Walk in Chiller 8 ft x 6 ft
|
2400 x 1800 x 2400
|
2 to 6 deg C
|
230 V / 1PH / 1.6 KW
|
|
WC 242424
|
Walk in Chiller 8 ft x 8 ft
|
2400 x 2400 x 2400
|
2 to 6 deg C
|
230 V / 1PH / 1.8 KW
|
|
WC 243024
|
Walk in Chiller 10 ft x 8 ft
|
3000 x 2400 x 2400
|
2 to 6 deg C
|
230 V / 1PH / 2.0 KW
|
|
WC 302424
|
Walk in Chiller 10 ft x 10 ft
|
3000 x 3000 x 2400
|
2 to 6 deg C
|
230 V / 1PH / 2.2 KW
|
|
WC 181824
|
Walk in Chiller 6 ft x 6 ft
|
1800 x 1800 x 2400
|
-22 to -18 deg C
|
230 V / 1PH / 1.6 KW
|
|
WC 182424
|
Walk in Chiller 8 ft x 6 ft
|
2400 x 1800 x 2400
|
-22 to -18 deg C
|
230 V / 1PH / 1.8 KW
|
|
WC 242424
|
Walk in Chiller 8 ft x 8 ft
|
2400 x 2400 x 2400
|
-22 to -18 deg C
|
230 V / 1PH / 2.4 KW
|
|
WC 243024
|
Walk in Chiller 10 ft x 8 ft
|
3000 x 2400 x 2400
|
-22 to -18 deg C
|
230 V / 1PH / 2.5 KW
|
|
WC 303024
|
Walk in Chiller 10 ft x 10 ft
|
3000 x 3000 x 2400
|
-22 to -18 deg C
|
230 V / 1PH / 2.7 KW
|
